Fill-to-close integration guide

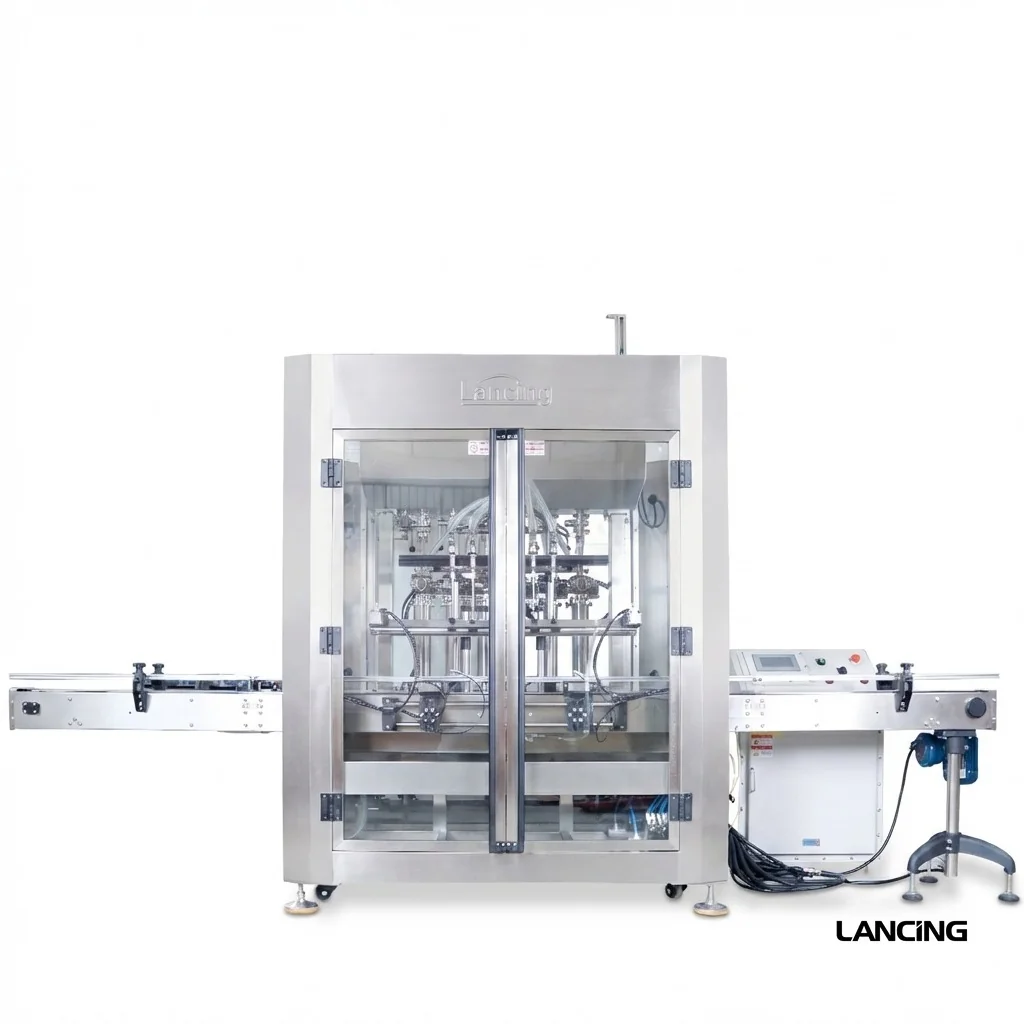

Plan the open-container journey from the filling nozzle to a secure closure, including cap presentation, container stability, vapour release, controls, rejects and the hazardous-area boundary.
This guide supports early fill-and-close line specification. It does not classify a hazardous area, approve a capping machine for a zone or replace competent review of the product, release scenario, closure, equipment, extraction, static control and operating procedures.
Often, yes: a filled container can remain an open source of vapour, spills or drips until the closure is seated and secure, so the transfer and capping stages should be included in the same process review. The competent classification determines which equipment is inside the hazardous area and which interfaces or controls are relied on outside it.
Do not assume that the filler can be specified independently and a standard capper added later. Container accumulation, cap feeding, torque application, rejected packs, product on the neck and fault recovery can change both production performance and the release scenario.
| Closure route | Information needed | Key integration questions |
|---|---|---|
| Screw cap | Cap dimensions, thread, liner, target torque or application method, neck finish and allowable container load. | How is the cap presented, detected, started and tightened without tipping the filled pack or contaminating the thread? |
| Pump or trigger | Dip-tube length, orientation, closure geometry, thread, torque and handling sensitivity. | Can the component be fed automatically, or is controlled manual presentation more practical for the required output and area? |
| Crimped closure | Container neck, closure material, crimp dimensions, cosmetic requirements and inspection method. | Where is force applied, how is the pack supported and what evidence confirms a repeatable secure crimp? |
| Plug, press-on or push fit | Insertion force, retention requirement, venting behaviour, container stiffness and component tolerance. | Does insertion displace vapour or product, deform the pack or require guarding and force monitoring? |
| Manual closure presentation | Operator task, exposure time, ergonomic handling, connection sequence and safe recovery method. | Can the operator complete the task consistently without becoming the uncontrolled interface between filling and closing? |
The capper location should follow the competent area-classification drawing and the real release scenario, not a generic distance from the filler. Consider the open filled container, drips on the neck, product carried on conveyor components, cap feeding, extraction capture, abnormal stops and the time before the closure becomes secure.
Where cap feeding or controls are outside the classified area, define the mechanical transfer and any safety devices that cross the boundary. Where capping equipment is inside the area, include electrical and non-electrical ignition sources, friction, impact, static and maintenance activities in the equipment review.
The control narrative should define what counts as cap present, cap applied and cap accepted; what happens to an uncapped or partially capped container; and whether the line may accumulate open filled packs after a downstream stop.
Torque can be relevant, but the closure, liner, neck finish, starting method, thread engagement and acceptance method also control the result.
Cap orientation and supply can dictate output, operator exposure and the location of additional moving or electrical equipment. Define the route before the line layout is frozen.
A capper or labeller fault can leave open or partially closed packs upstream. The cause-and-effect schedule should state how the filler, conveyor and reject route respond.
Use the HSE DSEAR control hierarchy, hazardous-area classification guidance and guidance on flammable-liquid handling with the site-specific assessment and machine specification.
Closure questions
Only after the area, release and equipment interfaces have been competently reviewed. The open filled pack, product on the neck, distance and time to closure, extraction, conveyor transfer and capper ignition sources determine whether a standard arrangement is suitable.
That depends on its intended location and the approved classification, not on the capper label alone. The specification should show where the bowl, elevator, hopper, chute, sensors and controls sit and how components cross any hazardous-area boundary.
There is no universal time that can be stated without the product and process assessment. Minimise uncontrolled open-container exposure, then define the allowed transfer, accumulation and fault conditions in the risk assessment and control narrative.
FAT can verify the agreed application and inspection method using representative containers and closures under defined conditions. The acceptance criteria, measurement method, sample size and effects of product on the neck should be agreed before testing.
The line should move to the documented safe state without building an unmanaged queue of open filled containers. The response can include inhibiting new fills, controlled conveyor stops, maintaining required extraction and providing an authorised recovery route.
Yes, where closure handling is part of the project. Send production-representative caps, pumps, triggers or crimp components with containers from the tolerance range, plus drawings and the intended acceptance method.
