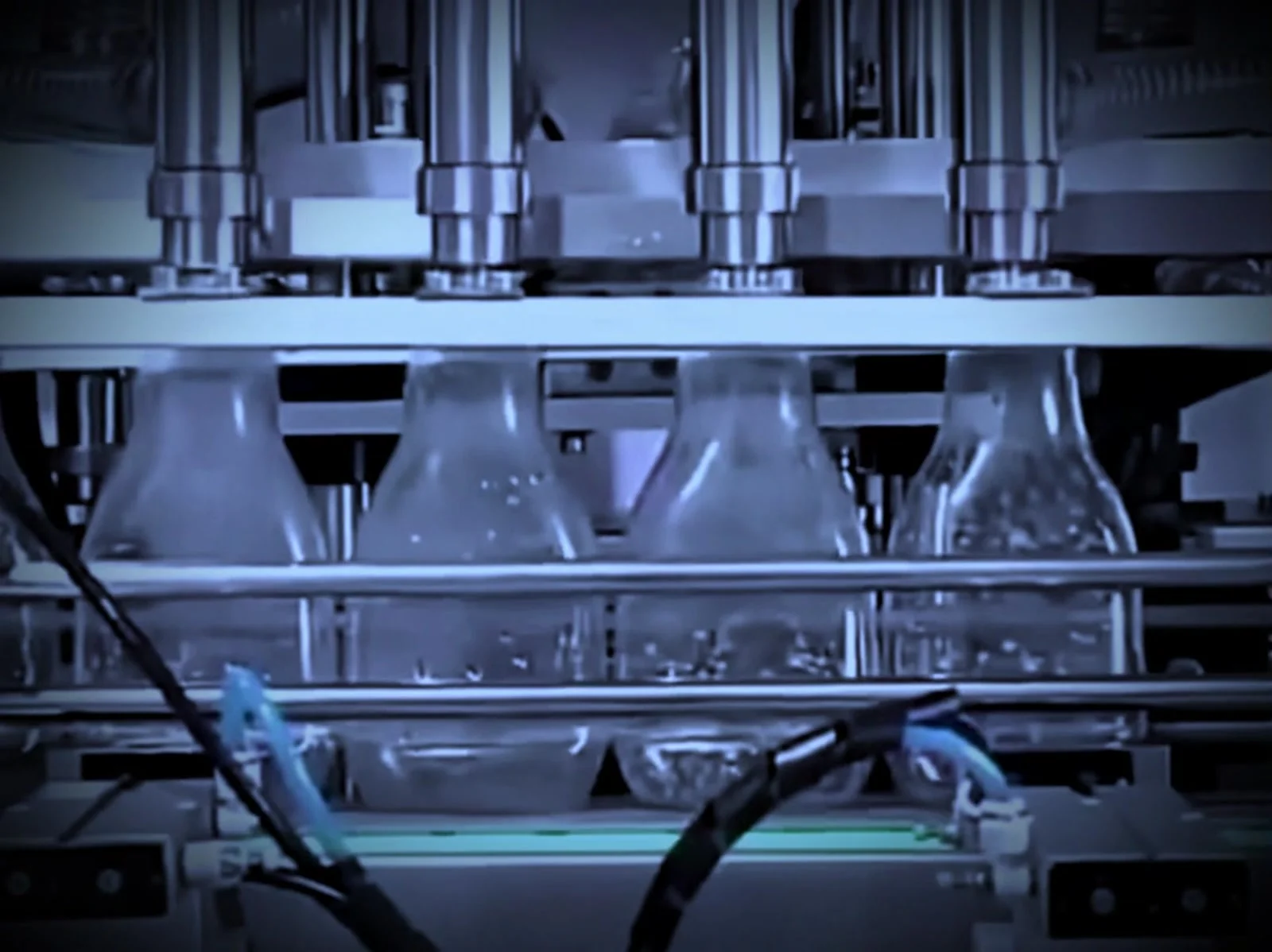

Nitrogen Purging & Inerting for Flammable-Liquid Filling
Understand when nitrogen may be considered, what must be monitored and why inerting is not an automatic substitute for hazardous-area classification, ignition control or ventilation.
Direct answer
Nitrogen inerting reduces oxygen in a defined space; it does not by itself make a filling machine or workplace ATEX suitable.
Inerting may be used to prevent or limit a flammable atmosphere inside a vessel, supply tank, pipe or container headspace, but the technique depends on achieving and maintaining a specified oxygen concentration with adequate reliability. The system must address gas supply, purge sequence, venting, monitoring, alarms, loss-of-supply response, safe restart and the serious asphyxiation hazard created by oxygen displacement.
For a filling project, the competent risk assessment must decide whether inerting is an appropriate control and which space it protects. Open filling, displaced vapour, leaks, container handling and equipment outside the inerted volume may still create hazardous areas and ignition-source requirements. Nitrogen therefore sits alongside—not in place of—release prevention, extraction, earthing and bonding, suitable equipment, operating procedures and emergency arrangements.
Inert gas is a life-safety hazard as well as a process control.
Nitrogen is colourless and odourless. A leak or discharge can create an oxygen-deficient atmosphere without warning, especially in enclosed or low-lying areas. The site design must consider ventilation, detection, access control, training and emergency response.
System boundary
Where nitrogen can appear in a filling project.
Supply-vessel blanketing
A controlled nitrogen space may be maintained above product in a tank to reduce air ingress, subject to pressure, venting and supply reliability.
Pipe or equipment purge
Air may be displaced during commissioning, product change or maintenance, with a defined endpoint and controlled discharge route.
Container pre-purge
A container headspace may be purged before filling where the product, pack, closure and process justify it.
Purging during fill
Nitrogen may be introduced around the fill point or headspace, but gas and displaced vapour still need a safe path.
Post-fill headspace
A final headspace purge may be considered before closure for specific product-quality or process reasons.
Maintenance inerting
Tanks and lines may be purged before or after maintenance, creating separate isolation, testing and confined-space controls.
What inerting can do
Reduce oxygen within a defined and controlled volume.
- Help keep a fuel-and-air mixture outside its flammable range when designed and monitored correctly.
- Limit air ingress into a closed vessel maintained at a suitable slight positive pressure.
- Support controlled commissioning, decommissioning or product-transfer sequences.
- Provide an additional layer of protection where the risk assessment requires it.
What inerting cannot prove
It does not remove the need to assess the complete process.
- It does not demonstrate that the external filling area is non-hazardous.
- It does not make standard electrical or non-electrical equipment suitable for a classified Zone.
- It does not control static charging, hot surfaces, mechanical sparks or every release source.
- It does not remain effective after loss of gas, air ingress, open access or an unmonitored process change.
Controls and cause-and-effect
Define how the machine responds when inerting is required.
| Control question | Evidence needed | Typical design consequence |
|---|---|---|
| What oxygen limit applies? | Process safety basis, product data, temperature and credible dilution or ingress conditions. | Sets analyser range, alarm points and the condition required before filling can start. |
| How is purge completion proved? | Validated purge volume, time, flow or direct oxygen measurement. | Determines the permissive and prevents a timer from being treated as proof without justification. |
| What happens if nitrogen is lost? | Risk assessment, supply reliability and available backup. | May require inhibit, controlled stop, valve closure, alarm, automatic changeover or operator action. |
| Where does displaced gas go? | Vent and extraction design, hazardous-area drawing and discharge location. | Prevents nitrogen and flammable vapour being released into an unsafe occupied area. |
| How is safe restart achieved? | Defined recovery sequence and proof that the protected atmosphere has been restored. | Prevents automatic restart after an unverified loss of inerting. |
FAT scope
Factory checks should prove the control sequence, not the installed room.
- Input simulation for nitrogen pressure, flow and analyser signals.
- Purge sequence, permissives, alarm thresholds and stop response.
- Valve fail position and response to power, air or gas loss.
- Data logging, recipe protection and operator messages.
- Restart prevention until the agreed conditions are restored.
SAT scope
Site checks must include the real gas, vents and occupied environment.
- Installed supply capacity, regulator, pipework and backup arrangements.
- Oxygen analyser calibration and sample-point suitability.
- Ventilation, discharge and extraction performance.
- Room or local oxygen-deficiency risk controls.
- Integration with site alarms, emergency systems and permit procedures.
Buyer questions
Questions about nitrogen purging and inerting.
Does nitrogen purging make an ATEX filler unnecessary?
No. The risk assessment must show which atmosphere is controlled, how reliably it is controlled and what remains outside that boundary. Equipment and ignition-source requirements may still apply to the filler and surrounding area.
Is a timed purge enough?
A timer may be part of a validated sequence, but elapsed time alone is not proof unless the purge flow, volume, starting condition, leakage and mixing assumptions are controlled and justified. Direct oxygen monitoring may be required by the process safety basis.
Can nitrogen be discharged into the room?
The discharge route must be assessed. Nitrogen can displace oxygen and flammable vapour may accompany the purge. Venting, extraction and occupied-space monitoring must be designed for the actual release.
Should the machine stop if nitrogen pressure falls?
When inerting is a required safety condition, loss of supply or proof normally needs a defined machine response. The exact safe state, delay, valve action and restart logic come from the risk assessment and control narrative.
What information is needed for a quotation?
Provide the product SDS, intended inerted volume, vessel and container details, purge purpose, oxygen criterion, nitrogen supply, vent and extraction routes, area classification, required monitoring, alarms and the intended FAT/SAT boundary.
Authoritative source
HSE treats inerting as an engineered control with monitoring and asphyxiation risks.
HSE guidance on inerting describes oxygen reduction, the need to consider control-system reliability and continuous monitoring, and the major asphyxiation risk associated with inert atmospheres. This general guidance must be converted into an application-specific design by competent people.
Related planning topics include vapour extraction and containment, LEL detection and ventilation interlocks and earthing, bonding and static control.
